Project Description

  MECHANICAL& ELECTRICAL CHARACTERISTICS

Model

Standard Power(W)
Best Working Voltage(V) Best Working Current(A) Open-Circult Voltage(V) Short-Circult Current(A) Dimension(mm) Net Weight Packing
WP(Watt)
VMP(V) IMP(A) VOC(V) ISC(A) L*W*H KGS QTY/CTN CBM(m3) Weight(kgs)
HFM-5
5
18 0.278 22.5 0.301 290*180*17 1 20 0.021 23
HFM-10
10
18 0.556 22.5 0.601 330*290*17 1.5 10 0.025 18
HFM-15
15
18 0.833 22.5 0.902 450*290*20 2.4 10 0.036 27
HFM-20 20 18 1.111 22.5 1.202 450*350*20 2.6 10 0.049 29
HFM-25 25 18 1.389 22.5 1.503 540*350*25 2.8 10 0.052 31
HFM-30 30 18 1.667 22.5 1.803 520*540*25 3 10 0.093 33
HFM-35 35 18 1.944 22.5 2.104 560*540*25 3.5 5 0.048 20.5
HFM-40 40 17.5 2.286 22.1 2.473 620*540*25 4.1 5 0.055 23.5
HFM-45 45 18 2.5 22.1 2.705 620*540*25 4.1 5 0.056 23.5
HFM-50 50 18 2.778 22.1 3.006 700*540*25 5.3 5 0.062 29.5
HFM-60 60 17.5 3.429 22.1 3.711 760*670*30 6.1 5 0.084 33.5
HFM-70 70 18 3.889 22.1 4.208 760*670*30 6.1 5 0.084 33.5
HFM-80 80 17.5 4.571 22.1 4.946 1200*540*30 8.5 2 0.062 20
HFM-90 90 18 5 21.6 5.410 1200*540*30 8.5 2 0.062 20
HFM-100 100 18.5 5.405 23 5.849 1200*540*30 10.5 2 0.062 20
                          OPERATING CHARACTERISTICS
Maximum System Voltage[V]
1000/ 1500 DC(IEC)
Nominal operating cell temperature[℃] 45+-2
Maximum Series Fuse Rating[A]
15
Temperature coefficients of Pmax[%/℃] -0.42
Operating Temperature[℃]
-40 to + 85
Temperature coefficients of Voc[%/℃] -0.31
Max load(snow/wind)[Pa]
5400/2400
Temperature coefficients of Isc[%/℃] +0.05
                                                                              *STC:Irradiance 1000W/m², module temperature 25℃, AM=1.5                                                                            WARRANTY:12-year product warranty;25-year linear power output warranty

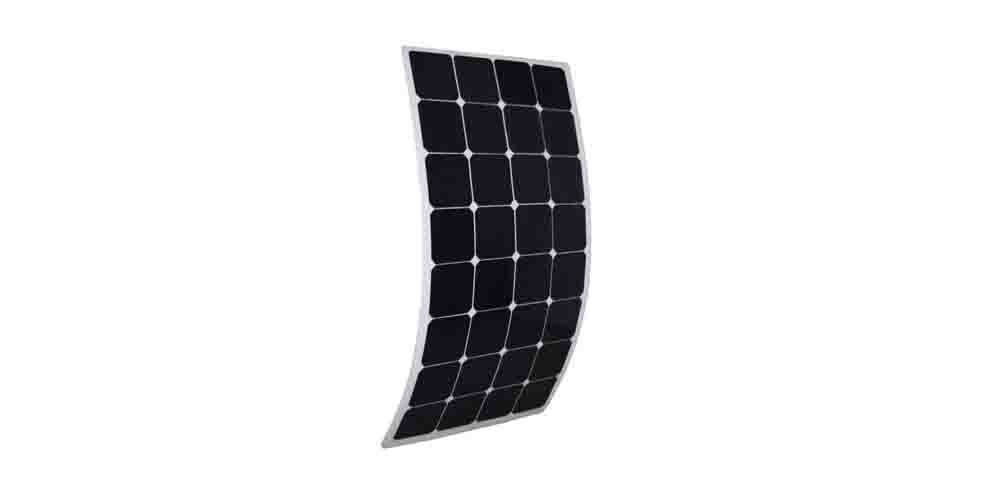

 5W-100W Mono Solar Panel

Panel Features:
Standard 5W~100W 18v Solar Panel
34Vdc output for charging the 24V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
